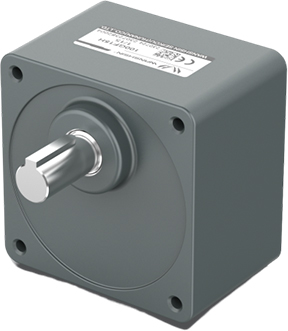

Standard Gearbox

Overview
Technical Information
  • High durability: adopt high-strength die-cast aluminum alloy housing and carburized gears, hardness is up to HRC62.
  • Low noise: good design, precision manufacturing, noise below 65dB(A)
  • Maintenance-free: compact machine, gearbox lubricated with grease, maintenance-free for life.
  • Wide application: various models and installation methods are widely used in most industries.
  • Insulation grade: F grade, temperature resistance 155 ℃.
Stand size 60#/70#/80#/90#/100#
Reduction ratio 3~200
Features
Parameters
Directory
Product Features
  • 1
    Hight torque, high load-bearing capacity
  • 2
    Low noise, maintenance-free
  • 3
    High efficiency, low temperature rise
  • 4
    Wide power range, wide application
  • 5
    Customized for multiple industries
Performance Parameter

AC MOTOR MODEL 60GK100H_
1. Stand Code 2. Model Code 3. Reduction ratio 4. Structure Code 5. Derived Code
60、70、80、90、100、L80、L90、L100 GK：6-25W GEARBOX
GF：40-200W GEARBOX
GM：(80、90)INTERMEDIATE GEARBOX 		3、3.6 ... 200 H：STANDARD
HE：EARED
RT： RIGHT ANGLE SOLID
RC：RIGHT ANGLE HOLLOW 		K：HOLE


Performance Parameter

Model Stand code Reduction ratio
STANDARD GEARBOX
 60#/70#/80#/90#/100# 3~200
EARED GEARBOX
 90# 3~200
RIGHT ANGLE SOLID 80#/90#/100# 3~500
RIGHT ANGLE HOLLOW GEARBOX 80#/90#/100# 3~500
INTERMEDIATE GEARBOX 80#/90# 10
